Deity D-XLR

Give it some power

The D-XLR is specially designed for Deity V-Series mics to trigger their Smart 3.5mm TRRS outputs with bias power from a standard XLR input.

Video Mics Meet XLR

The D-XLR enables you to convert your video microphones into XLR microphones. This allows you to run mics like the Deity V.Lav and D3 Pro directly into an XLR mixer or USB sound card.

Give Your Audio Phantom Power

The V.Lav typically runs off 3V bias power supplied by a DSLR, laptop, or mobile phone. The D-XLR can create that same 3V bias “plug-in power” when you supply it with 48V phantom power. The D-XLR uses active circuitry to make the conversion and won’t affect your sound quality.

Fits Like A Glove

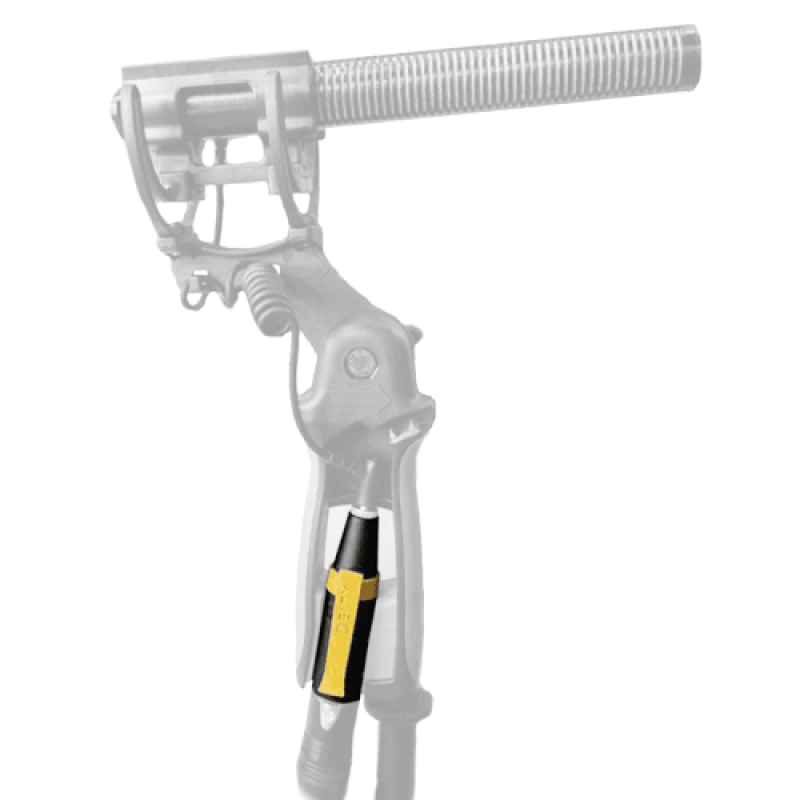

We developed the D-XLR originally for the V-Mic D3 Pro so you could take your on-camera microphone off your camera and put it on a boom pole. The D-XLR mount is designed to fit perfectly into the Rycote pistol grip shockmount. The yellow clip was added so you could mount it onto other objects if need be.

Input1/8″ / 3.5 mm TRS Female
OutputXLR 3-Pin Male
Voltage12 to 48 VDC Phantom Power
Bias Voltage3 V
Signal-to-Noise Ratio (SNR)80.9 dB
Total Harmonic Distortion (THD)0%
Construction MaterialCNC-Machined Aluminum
Dimensions (H x W x D)2.7″ x 0.7″ x 0.7″ / 69.7 x 19.0 x 19.0 mm
Weight1 oz / 29.2 g

Escribe opinión

Nota: No se permite HTML!
    Malo           Bueno

Captcha

Deity D-XLR

  • Visitas: 7751
  • Referencia: Deity D-XLR
  • Disponibilidad: 2
  • 25,00€

Etiquetas: Deity, Adaptador
