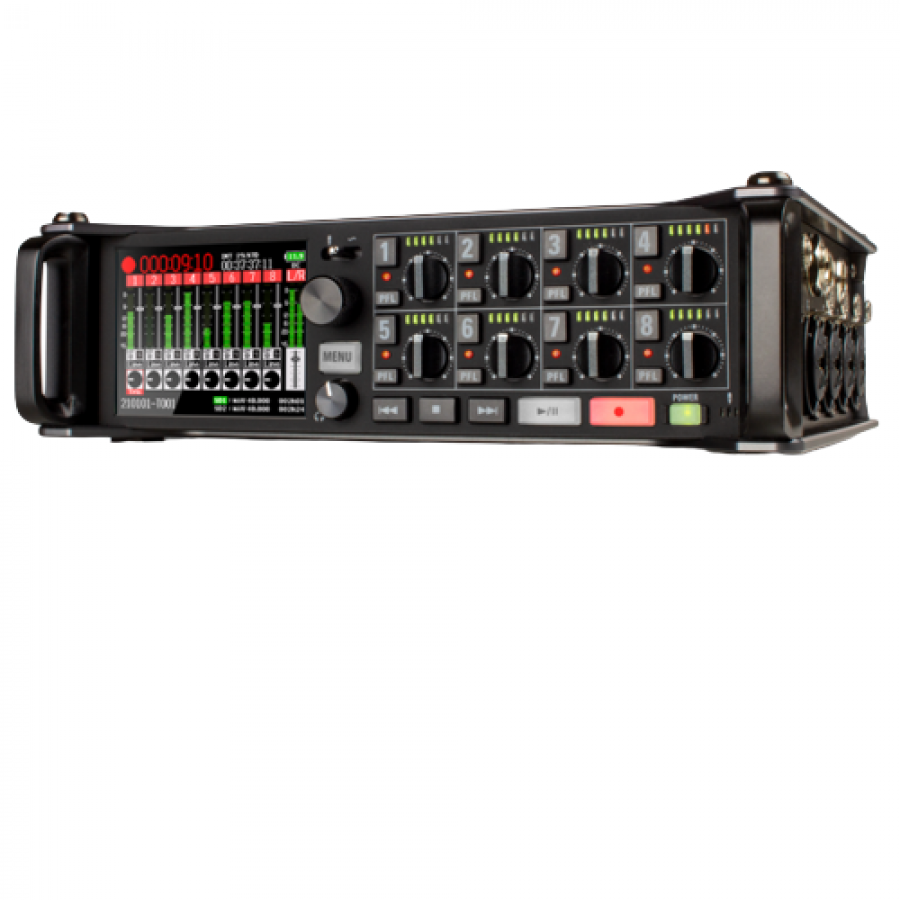

ZOOM F8N PRO

- Alquiler incluye bolsa (ORCA OR-28) y cargador AC.

• Tecnología de grabación a 32 bits y coma flotante
• Grabador/mezclador de campo de 8-canales/10-pistas
• 8 entradas distintas con conectores combo XLR/TRS Neutrik con bloqueo
• Previos de micro de alta calidad con hasta 75 dB de ganancia y menos de -127 dBu EIN
• Entradas +4dB conmutables con opciones micro/línea tanto para XLR como TRS
• Software Zoom AutoMix™
• Time Code preciso (0.2 ppm cuando está encendido y hasta 0.2 ppm cuando está apagado) I/O sobre conectores BNC estándar; formatos dropframe/non-drop con Jam Sync
• Tres opciones distintas de suministro de corriente: 8x pilas AA, paquete de pilas DC externo con conector Hirose o adaptador AC de 12V (las pilas AA y el paquete de pilas DC no están incluidos)
• Filtro paso-alto, inversión de fase y decodificador Mid-Side
• Retardo de entrada de hasta 30mseg por canal / retardo de salida de hasta 10 cuadros por salida
• Pareja de Main Outs sobre mini-XLR (TA3) balanceados además de un Sub Out sobre mini jack estéreo de ⅛"
• Salida de auriculares dedicada (100 mW) con control de volumen en el panel frontal
• LCD retroiluminado a todo color de 2.4" con modo monocromático
• Visor PFL dedicado con ajustes de recorte visibles
• Pareja de ranuras de tarjetas SD/SDHC/SDXC, de hasta 1 TB cada una
• Graba en formatos de archivo WAV conforme normas BWF
• Soporte para multitud de metadatos (BMF e iXML); tiempo de entrada, fecha, proyecto, número de escena, etc.
• Uso como interfaz de audio USB de 8-in / 4-out
• La aplicación Zoom F8 Control gratuita para iOS / Android permite el control remoto inalámbrico, renombrar archivos y entradas de metadatos

ESPECIFICACIONES

INPUTS

INPUT 1 - 8	Connectors:	XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
INPUT SOURCE SET TO MIC	Input gain:	+10 – +75 dB
	Input impedance:	3 kΩ or more
	Maximum input level:	+4 dBu (at 0 dBFS)
	Phantom power:	+24/+48 V, 10 mA maximum per channel
EQUIVALENT INPUT NOISE		−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)
FREQUENCY RESPONSE		20 Hz – 60 kHz, +0.5 dB/−1 dB (192 kHz sample rate)
A/D DYNAMIC RANGE		113 dB typ. (−60 dBFS input, A-weighted)
CROSSTALK		−90 dB or less (between adjacent channels, 1 kHz)
MIC IN		ZOOM mic capsule input (use disables Inputs 1/2)
SLATE MIC		Built-in mic for voice memos can be assigned to tracks freely

OUTPUTS

MAIN OUT 1/2	Connectors:	TA3 connectors (balanced output, 2: hot)
	Output impedance:	150 Ω or less
	Reference output level:	−10 dBV (normal output level)
		+4 dBu (line output level)
		1 kHz, 600 Ω load
	Maximum output level:	+10 dBV (normal output level)
		+24 dBu (line output level)
		1 kHz, 600 Ω load
SUB OUT 1/2	Connectors:	3.5 mm stereo mini (unbalanced output)
	Output impedance:	100 Ω or less
	Reference output level:	−10 dBV (normal output level)
		−40 dBu (mic output level)
		1 kHz, 10 kΩ load
	Maximum output level:	+10 dBV (normal output level)
HEADPHONE	Connector:	1/4 inch stereo (unbalanced output)
	Output impedance:	18 Ω or less
	Maximum output level:	100 mW + 100 mW (32 Ω load)
D/A DYNAMIC RANGE		105 dB typ. (−60dBFS input, A-weighted)

RECORDING MEDIA

	Dual SD card slots:	SDHC cards: 4 GB – 32 GB
		SDXC cards: 64 GB – 1 TB

RECORDING FORMATS

WHEN WAV SELECTED	Supported formats:	44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz
		16-bit linear, 24-bit linear and 32-bit float
		Mono/stereo/2-10 ch poly
		BWF and iXML
	Maximum simultaneous recording tracks:	10 (8 inputs + stereo mix)
		8 (at 192 kHz sampling rate)
WHEN MP3 SELECTED	Supported formats:	128, 192 and 320 kbps
		44.1 and 48 kHz
		ID3v1 tags
	Maximum simultaneous recording tracks:	2

RECORDING TIME

	Using a 32GB card:	23:08:00 (48 kHz/32-bit float stereo WAV)
		5:47:00 (192 kHz/32-bit float stereo WAV)

TIMECODE

	Connector:	BNC
	Modes:	Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)
	Frame rates:	23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
	Precision:	±0.2 ppm
	Supported input levels:	0.2 - 5.0 Vpp
	Input impedance:	4.6 kΩ
	Output level:	3.3 Vpp
	Output impedance:	50 Ω or less

POWER SUPPLIES

	AA batteries:	8 (alkaline, nickel-metal hydride or lithium)
	AC adapter:	ZOOM AD-19, DC 12 V/2 A, center plus
	External DC power supply:	HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V

ESTIMATED CONTINUOUS RECORDING TIMES:

• THESE VALUES ARE ONLY ESTIMATES.	2 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF	Alkaline batteries: about 6 hours
• THESE VALUES ARE BASED ON IN-HOUSE TESTING METHODS.		NiMH batteries (2500 mAh): about 8.5 hours
• THEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS.		Lithium batteries: about 12 hours
	8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF	Alkaline batteries: about 5 hours
		NiMH batteries (2500 mAh): about 7 hours
		Lithium batteries: about 10 hours
	8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32Ω headphones, PHANTOM 48 V	Alkaline batteries: about 0.5 hours
		NiMH batteries (2500 mAh): about 1.5 hours
		Lithium batteries: about 2.5 hours
